| Product Model |

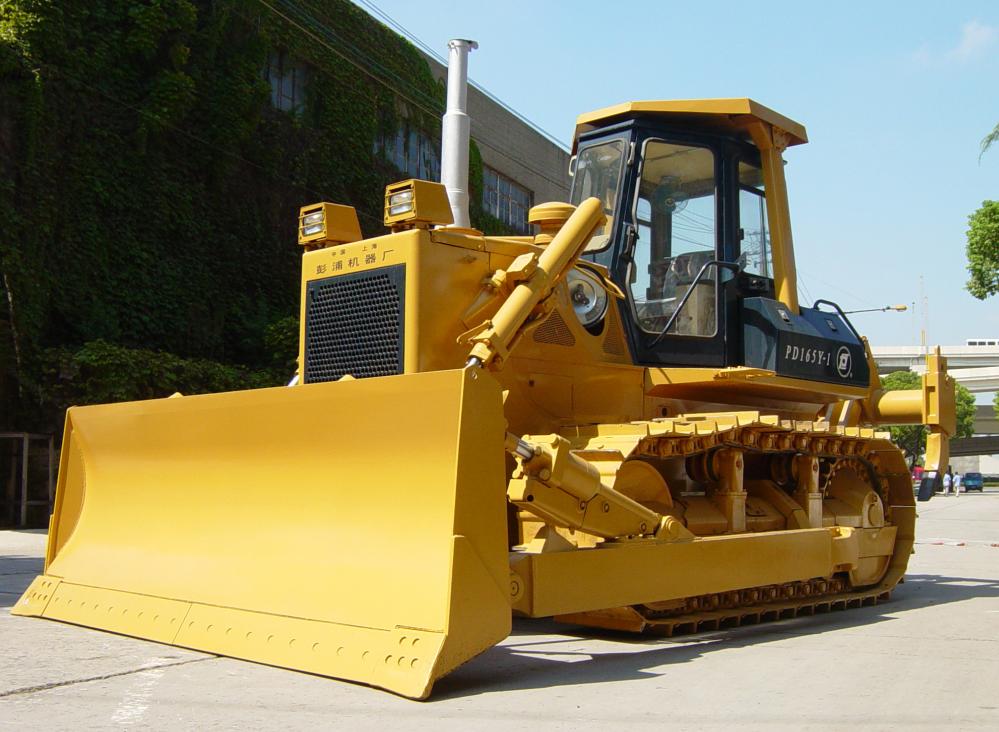

PD165Y-1 |
PD165YS |
| ENGINE |
| Model |
Cummins NT855 |
Cummins NT855 |
| Type |
Straight vertical, four-stroke, water cooling, PT pump injection, turbocharged |
Straight vertical, four-stroke, water cooling, PT pump injection, turbocharged |
| Flywheel power (kW) |
122 |
122 |
| Rated speed (r/min) |
1850 |
1850 |
| Number of cylinders-bore*stroke (mm) |
6-139.7*152.4 |
6-139.7*152.4 |
| Starting method |
Starting motor 24V 11kW |
Starting motor 24V 11kW |
| Battery |
24V (12V*2)-195AH |
24V (12V*2)-195AH |
| Air cleaner |
|
|
| Dry type, precleaned paper element air cleaner |
Dry type, precleaned paper element air cleaner |
| TRANSMISSION SYSTEM |
| Torque converter |
3-element, single-stage, single phase |
| Transmission |
|
| Hand-operated, Hydraulic shift, Planetary gear, multiple disc clutch, forced lubrication by gear pump, |
| Bevel gear |
helical bevel gear, Splash lubricated |
| Steering clutch |
|
| Wet, Multiple disc, Spring loaded, Hand-operated with booster and hydraulic-released |
| Steering brake |
Wet, band brake, operated with hydraulic booster |
| Final drive |
Spur gear, double reduction, splash lubrication |
| UNDER CARRIAGE |
| Sprocket |
Segmented |
|
Segmented |
| Number of track shoes (each side) |
6 (4 single, 2 double) |
|
7 (4 single, 3 double) |
| Track tension |
Hydraulic adjusted |
|
Hydraulic adjusted |
| Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers |
| TRAVEL SPEED (km/h) |
PD165Y-1 |
PD165YS |
| |
1st |
2nd |
3rd |
1st |
2nd |
3rd |
| Forward |
3.8 |
6.6 |
10.6 |
3.5 |
6.1 |
9.7 |
| Reverse |
4.9 |
8.5 |
13.6 |
4.4 |
7.5 |
11.9 |
| TRACK |
PD165Y-1 |
PD165YS |
| Type |
Sealed and lubricated single grouser or sealed single grouser |
| Track pitch (mm) |
203 |
|
203 |
| Track width (mm) |
560 |
|
1000 |
| Number of track shoes (each side) |
37 |
|
44 |
| Length of track on ground (mm) |
2430 |
|
3140 |
| Ground clearance (mm) |
400 |
|
500 |
| Ground pressure (Mpa) |
≤0.064 |
|
≤0.029 |
| Track gauge (mm) |
1880 |
|
2150 |
| HYDRAULIC SYSTEM OF WORK EQUIPMENT |
| Working pressure (Mpa) |
13.7 |
| Rated delivery (L/min) (2000r/min) |
250 |
| Pump |
Gear pump |
|
Gear pump |
| Control valve |
|
|
|
| Hydraulic-operated plunger , servo controlling |
|
Hand-operated, sliding type |
| Valve position |
Raise, Hold, Lower, Float |
| Cylinder,Boro*Rod*Stroke (mm) |
Φ110*Φ65*1026 |
| WORK EQUIPMENT |
PD165Y-1 |
PD165YS |
| Blade type |
Straight tilt blade |
Angle |
Straight tilt blade |
| Width*Height (mm) |
3416*1150 |
4019*1025 |
3725*1315 |
| Max.lift above ground (mm) |
1090 |
1110 |
1210 |
| Max.drop below ground (mm) |
530 |
530 |
440 |
| Pitch adjustment (°) |
55°±2° |
55° |
55°±2° |
| Bit lifting speed (m/s) |
≥0.35 |
≥0.35 |
≥0.35 |
| Gradeability (°) |
30 |
30 |
30 |
| Max.tilt (mm) |
860 |
860 |
860 |
| DimensionsLength*Width*Height (mm) |
4996*3416*3240 |
5185*4019*3240 |
5600*3950*3400 |
| Weight (kg) |
17860 |
17480 |
20000 |
